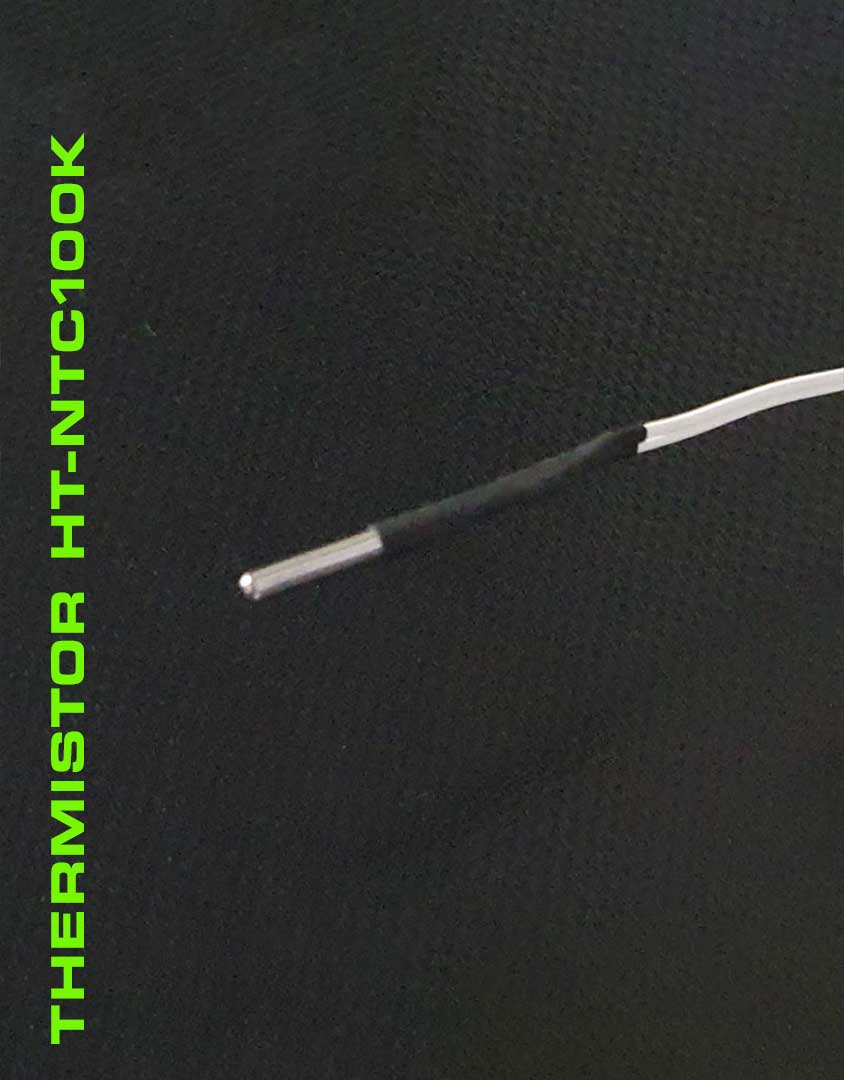

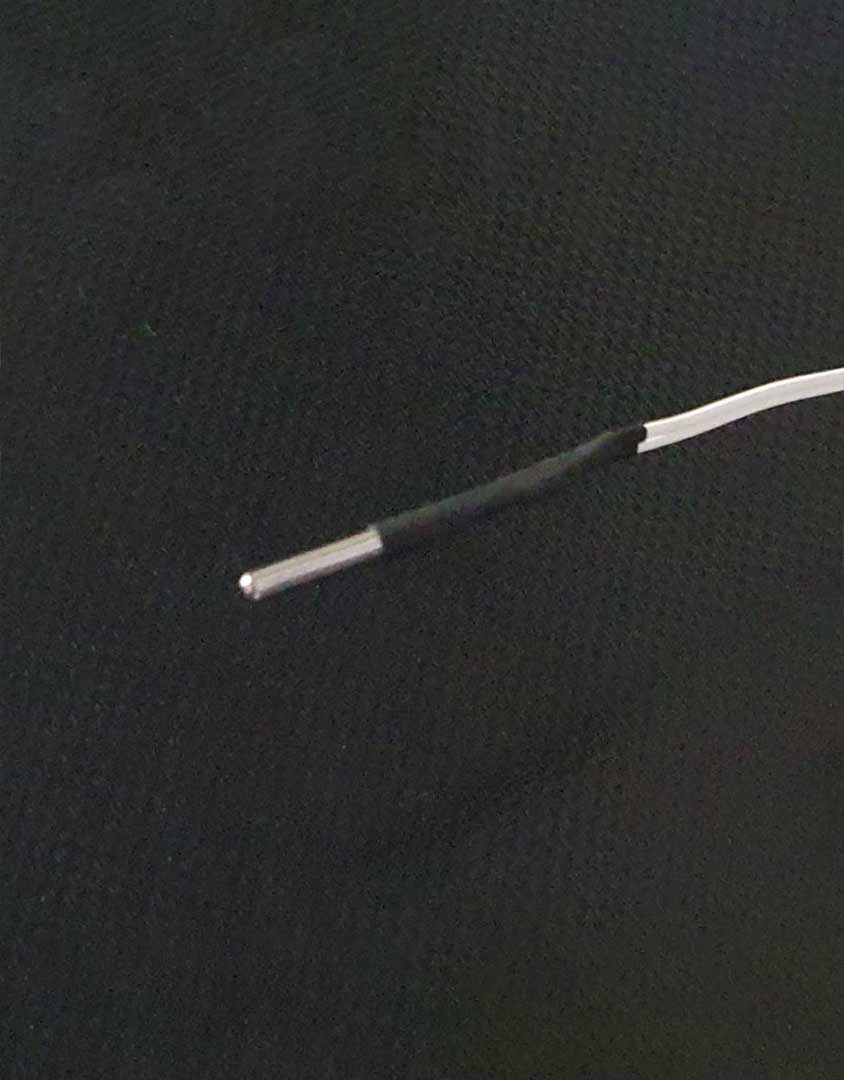

HT-NTC100K Thermistor For 3D Printer

Temperature Measurement Range: -50 ℃ ~ +350 ℃

Note: Not compatible with Creality standard blocks such as V2, MK8, modifications to the block are required.

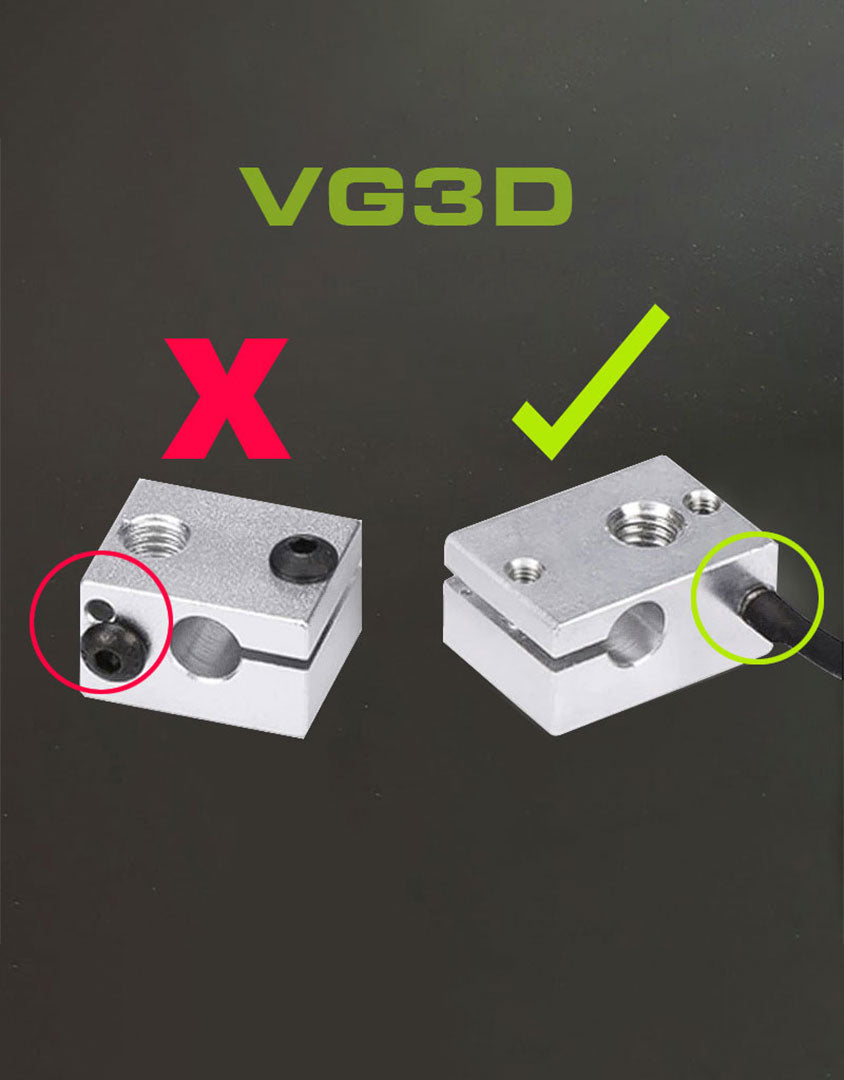

The “HT-NTC 100K Thermistor” is an upgrade from the original NTC 3950 Thermistor, the temperature probe directly inserts into the heat block without the risk of damaging the wiring wires like on the traditional thermistor when using a screw to hold the thermocouple.

The diameter of the probe head is 3mm, its length 15mm and it can be used with the heating block that supports this measurement. The temperature range of the HT-NTC100K Thermistor can be up to 350°C degrees, which can effectively replace the K-type thermocouple.

HT-NTC100K Thermistor Specification:

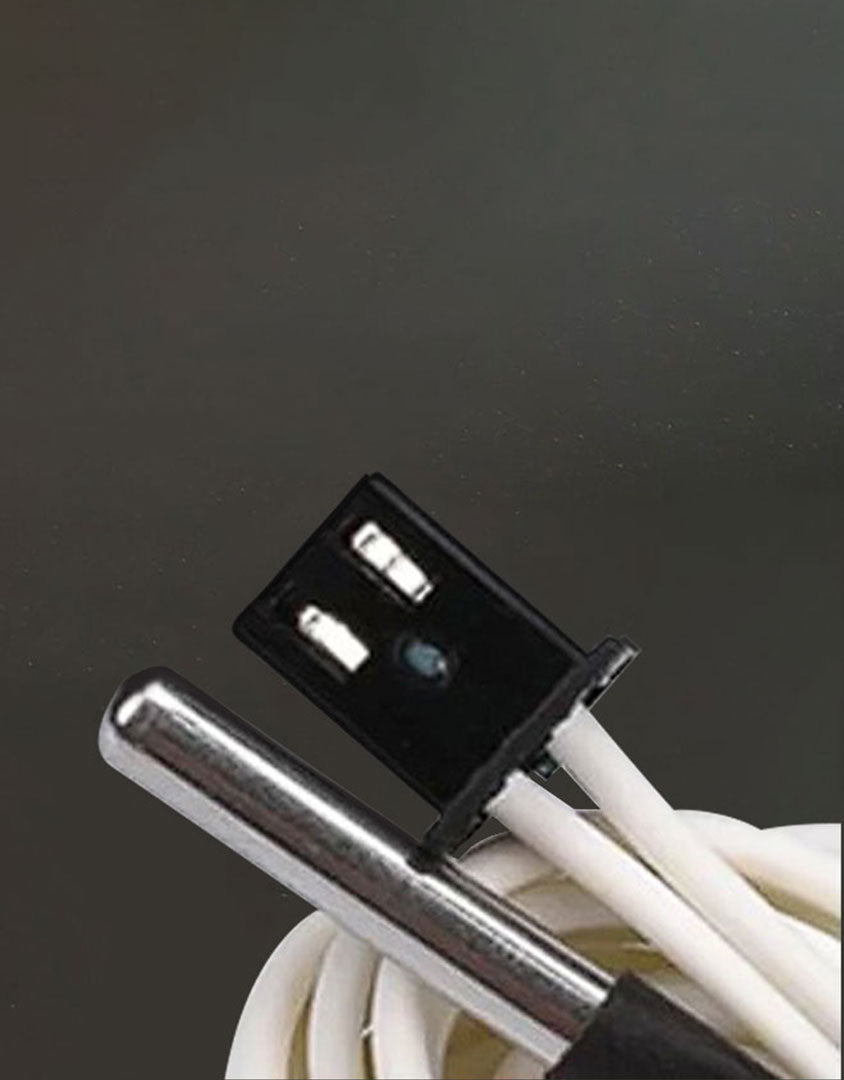

• HT-NTC 100K Thermistor temperature sensor with XH2.54 pin
• Less likely to damage the probe wires
• The stainless steel probe 304 ensures maximum service life with precision temperature readings
  Model Number: HT-NTC100K
  Product Name: HT-NTC100K Thermistor Temperature Sensor

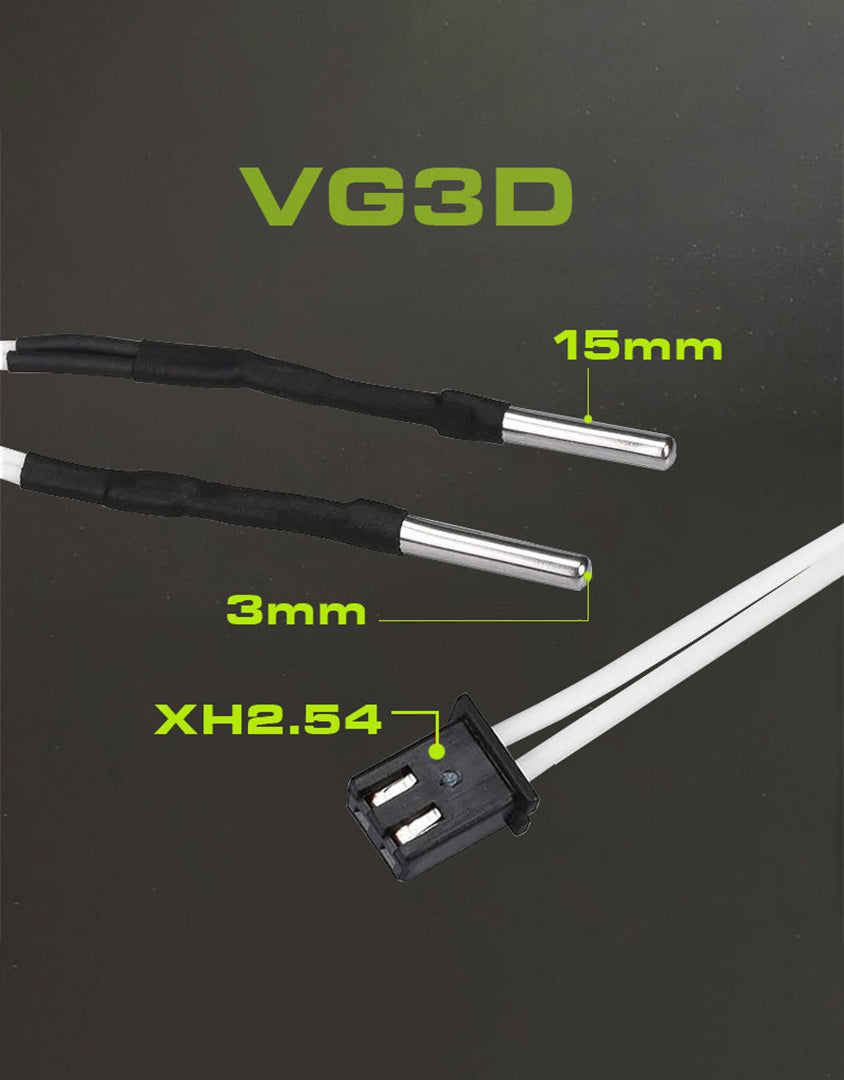

  Size: 15mm (Probe Length)
  Diameter: 3mm (Probe diameter)

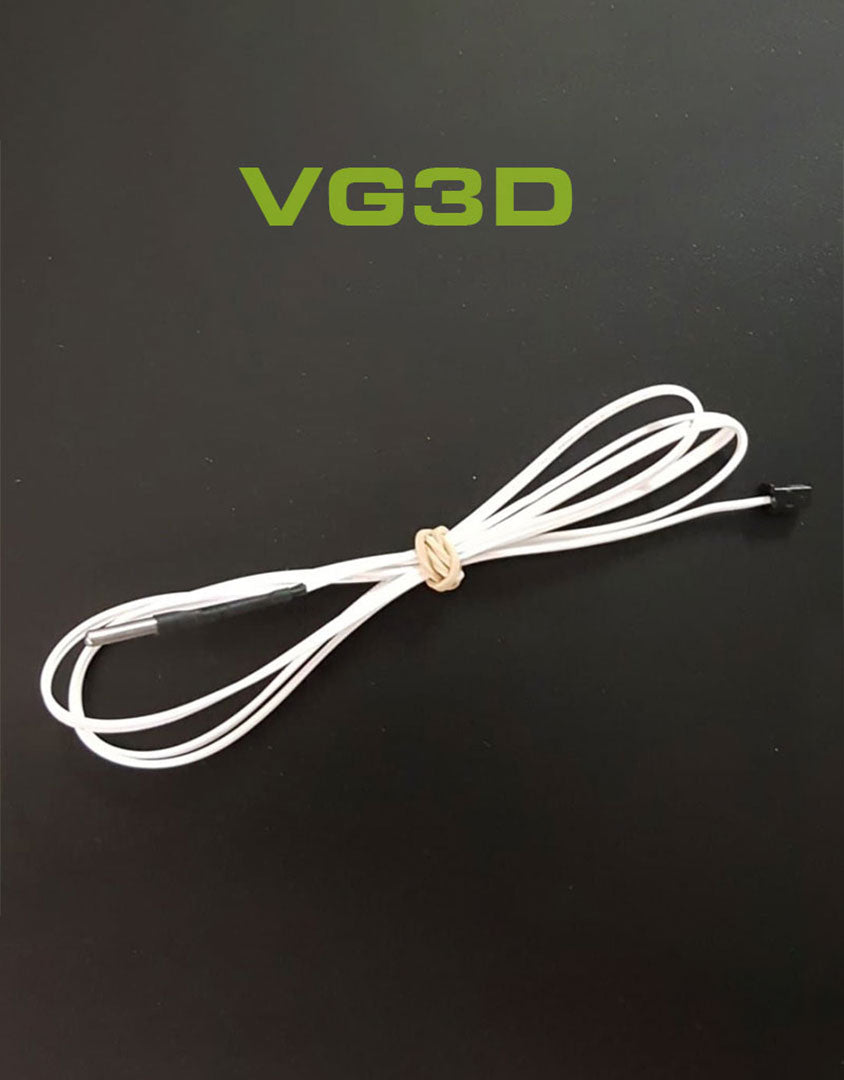

  Length of cable: 1M
  Temperature measurement: -50°C ~ 350°C+-
  Accuracy: ± 1%

Package includes
3 x HT-NTC100K Thermistor
100K with XH2.54
Length: 1 metre cable

Features

High Temperature
Resistance
Colour: White

Sold by

Performance

Static part
★★★★☆

Material

100% polymer
